Specifications
| Brand Name | SNEIK |
| Model Number | CK066 |
| Compatible Models | 09-11 Volkswagen Touareg Audi A5 A6 A8 Q7 |
| OE number | 059109229J，057109077,057109116H，057109116J，0571092 |
| purpose | Engine maintenance |
Description
SNEIK CK066 timing chain kit for the ASB, BKN, BKS, BMK, BNG, BPP, BSG, BUN engines, used in VOLKSWAGEN TOUAREG and AUDI cars (A4, A6, A8, Q7).

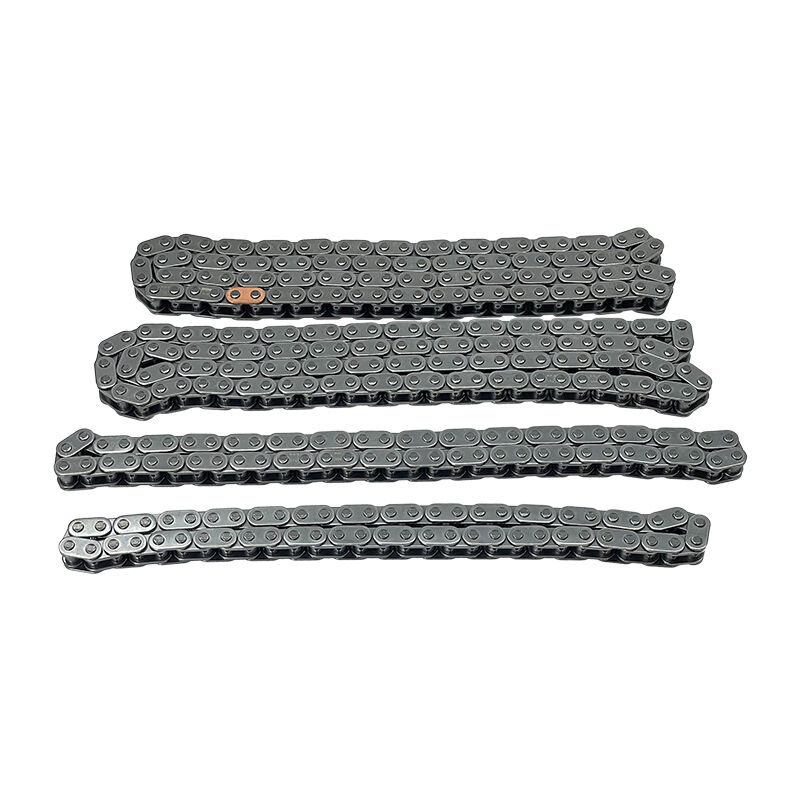

· Timing chain
· Camshaft chain No. 1
· Camshaft chain No. 2
· Oil pump chain

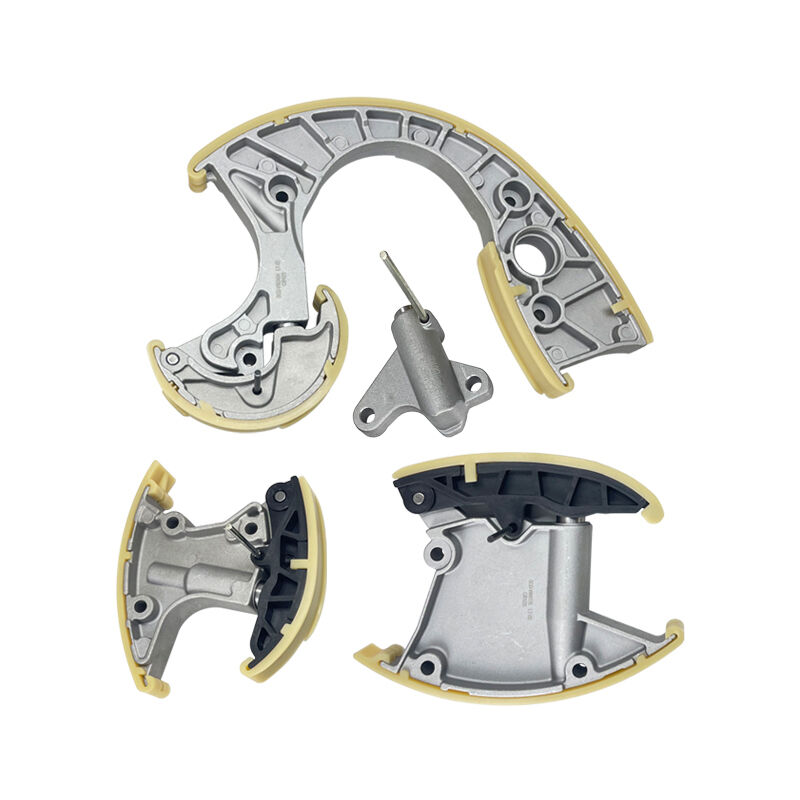

· Timing chain hydraulic tensioner

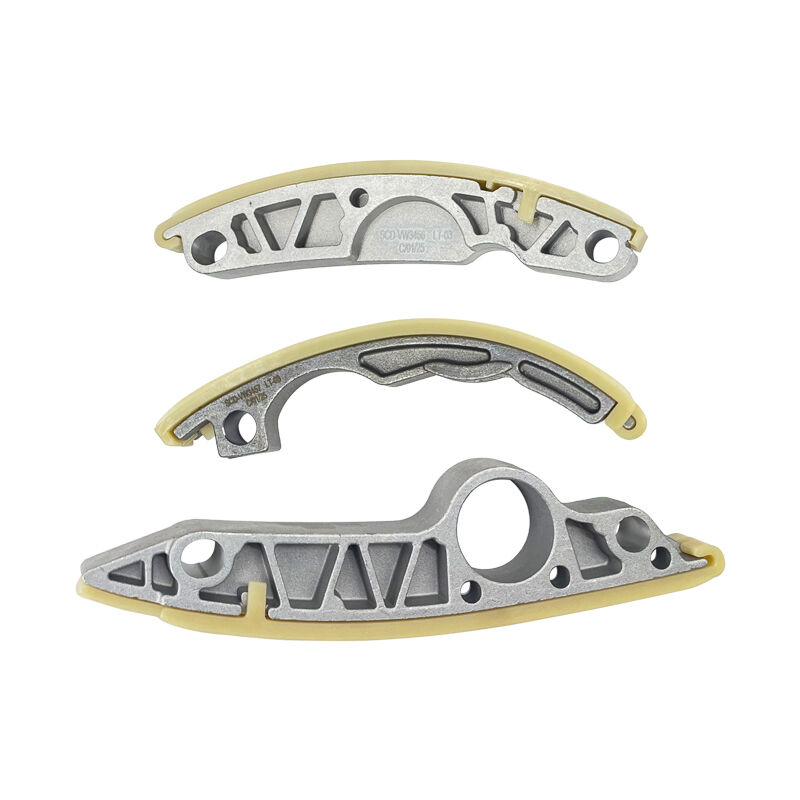

· Timing chain tensioner bar
· Timing chain damper No. 1
· Timing chain damper No. 2
· Camshaft chain tensioner No. 1
· Camshaft chain tensioner No. 2
· Oil pump chain tensioner

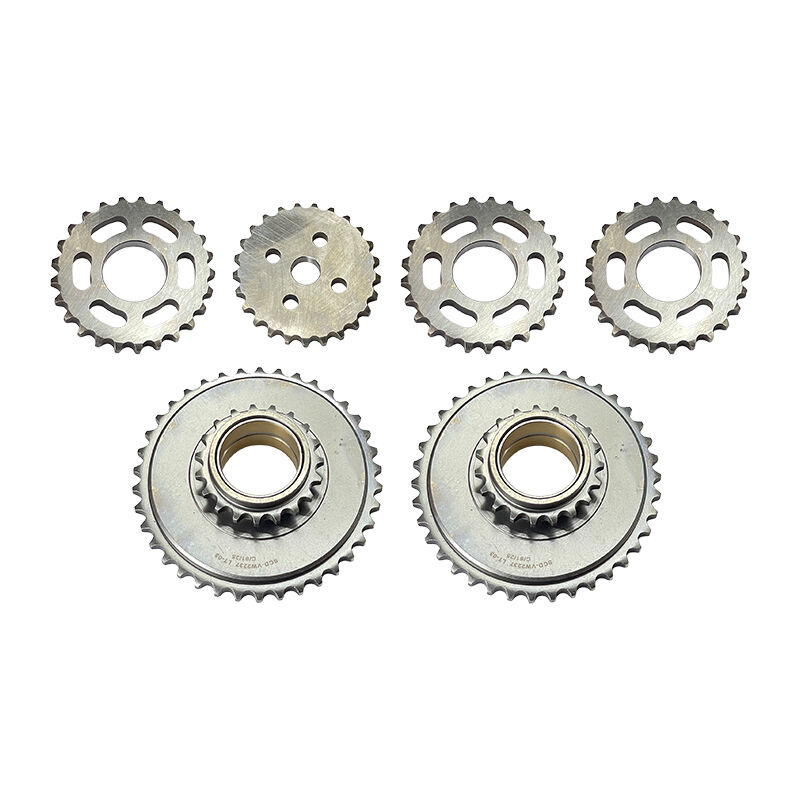

· Balance shaft gear
· Bypass gear No. 1
· Bypass gear No. 2
· Camshaft gear No. 1
· Camshaft gear No. 2
· Oli pump gear
SNEIK designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. SNEIK timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.
· Ultimate strength (mechanical stress): 13KN (~1325 kg)
· Outer plate (material – 40Mn, hardness – 47–51HRC)
· Inner plate (material – 50CrV, hardness – –52HRC)
· Pin (material – 38CrMoAl, hardness – 88-92HR15N)
· Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)
SNEIK timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.
Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.
As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the SNEIK timing chain kit is at least 200 000 km.
